Westone Concord I wiring

Thanks to Jon (Tele on the forums) for telling me the pot and capacitor values.

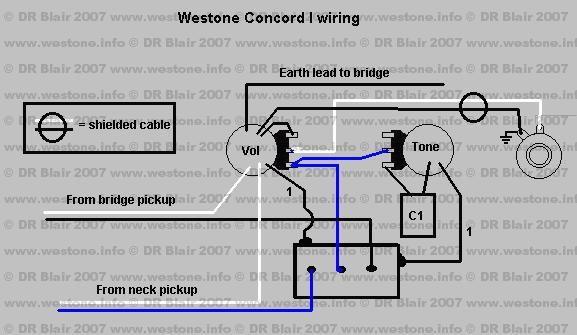

This  wiring diagram is taken from a 1984 Concord I. The pots are 250K log/audio, the tone capacitor is 0.047 microfarad Mylar. Pickup resistance - neck 4.74K, bridge 4.73K

  1. These wires are soldered to the body of the pickup selector switch
